T-LED Edge Light
T-LED Edge Light is an innovative solution for general lighting in commercial, retail and hospitality applications. Its perimeter illumination offers a unique edge lit look without sacrificing performance for aesthetics.
| Colour Temperature | 3000K or 4000K |
| Input Voltage | AC100-277V |
| Power Consumption (W) | 2X2=40 Watts 2X4=55 Watts |
| Lumen Output | 2X2=4800LM 2X4=6600LM |
| LED Type | Integral SMD 2835 LEDs |
| Luminous Efficacy | 120 Lumens per watt |
| Beam angle | 120° |
| Colour Rendering Index | >80 |
| LED Life (hours) | 50,000 |
| Dimmable | 0-10V |
| Approvals | cETLus, DLC |
- FL22-40-35 - FL22-40-35
- FL22-K40-30 - FL22-K40-30
- FL22-K40-40 - FL22-K40-40
- FL22-K40-50 - FL22-K40-50
- FL24-55-35 - FL24-55-35
- FL24-K60-30 - FL24-K60-30
- FL24-K60-40 - FL24-K60-40
- FL24-K60-50 - FL24-K60-50
- ZS-FL22-40-30-120V_IESNA2002 - ZS-FL22-40-30-120V_IESNA2002
- ZS-FL22-40-30-277V_IESNA2002 - ZS-FL22-40-30-277V_IESNA2002
- ZS-FL24-55-30-120V_IESNA2002 - ZS-FL24-55-30-120V_IESNA2002
- ZS-FL24-55-30-277V_IESNA2002 - ZS-FL24-55-30-277V_IESNA2002

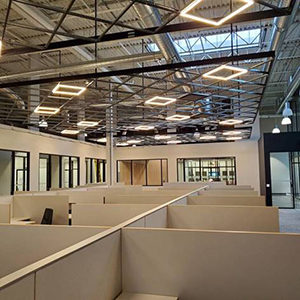

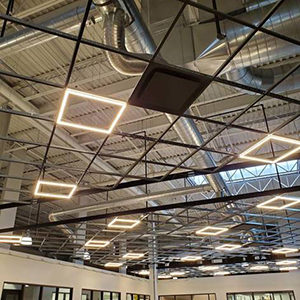

This product is suitable for the following applications:
- Down Lighting
- Commercial Lighting
- General Area Lighting
- Retail Stores
