LED Thin Star
LED Thin Star provides excellent LED lighting for under cabinets, showcases, in cabinets, and many other applications. This light weight fixture can be mounted to any surface, is low in power consumption and provides high quality light. LED Thin Star is available in two different lengths which can be joined together providing seamless light in the lengths you require.
| LED-TS-1U | LED-TS-2U | |
| Power Consumption | 3.5W (Max.) | 7.0W (Max.) |
| Current | 0.12A | 0.24A |
| Voltage | 24V DC | |
| LED Type | 5630 | |
| LED Life | 40,000 hours | |
| LED Number | 6 pcs | 12 pcs |
| LED CRI | > 80 | |
| Luminous Flux (lm) (+/-10% tolerance) | 155 lm | 300 lm |
| Luminous Efficiency | 44 lm/w | 43 lm/w |
| Illumination @ 45cm (+/- 10% tolerance) | 345 Lux | 594 Lux |
| CRI | > 80 | |
| LED Colours | 3000K +/-200K | |
| Fixture Colour | Aluminum / Black / White / Bronze | |
| Lens | Clear Glass | |
| Mounting | Double sided tape and wood screws (included) | |
| Size | 11 1/8” x 1 3/8” x 7/16” (281 x 34 x 11mm) |
21 7/8” x 1 3/8” x 7/16” (553 x 34 x 11mm) |
| Approvals | cETLus | |

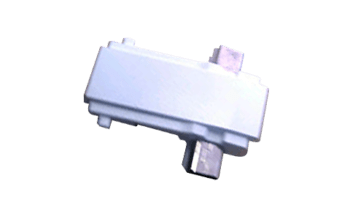

HBSLF-C-YY
JOINER MALE/MALE
LEDMS-WSC
WIRE SCREW CLIPS
LED-TSMF-YY-12
POWER SUPPLY CORD FEMALE (FROM DRIVER)
LED-TSMM-1.5-YY LED-TSMM-3-YY LED-TSMM-6-YY
CONNECTOR CORD MALE/MALE (BETWEEN FIXTURES)
This product is suitable for the following applications:
- Under Cabinet Lighting
- Museum Lighting
- Showcase Lighting
