LED Panel Lights

LED Panel Lights are designed for residential and commercial suspended grid ceilings in 1’x4′, 2’x2′ and 2’x4′ sizes. LED Panel Lights are used for office lighting, basement lighting, light box and sign back-lighting, gym lighting, school lighting, hospital lighting, and more!

Replace existing fluorescent troffer light fixtures or use for new construction applications. LED Panel Lights deliver a smooth, flawless wall of illumination without visible bulbs or hot spots. Bright and powerful—the DLC 4.0 Standard series with 100 – 120lm/watt and the DLC 4.0 Premium with 125 -140lm/watt and output of up to 7,800 lumens. The energy-efficient, cULus Listed LED panel operates within a wide 120-277V AC range, has a sturdy anodized aluminum alloy frame with white finish and 3mm PMMA, anti-yellowing lens. Each panel includes a UL-recognized constant-current driver with 0-10V dimming and terminal block connections of easy installations. Mount with our LED Panel Light suspension kit, surface mount kit or in an existing compatible location.

Available in 3000K, 4000K and 5000K colour temperatures.

Where to buy

Share this product:
Electrical 120V AC, 347V AC
Power Factor 0.90 Non-Flicker, 40W/60W
LEDs High bright SMD2835
Number of LEDs PL-2X2-40W-XX = 192
PL-1X4-40W-XX = 192
PL-2X4-60W-XX = 336
PLP-2X2-40W-XX = 192
PLP-1X4-40W-XX = 192
PLP-2X4-60W-XX = 384
LED Life 50,000 hours
THD ≤ 15%
CCT 3000K, 4000K, 5000K
Lumen Output PL-2X2-40W-XX = 4400 Lumens
PL-1X4-40W-XX = 4400 Lumens
PL-2X4-60W-XX = 6600 Lumens
PLP-2X2-40W-XX = 5200 Lumens
PLP-1X4-40W-XX = 5200 Lumens
PLP-2X4-60W-XX = 7800 Lumens
CRI > 80
Beam Angle 120°
Material AL+PMMA
Working Temperature -4°F~112°F (-20°C~+45°C)
Storage Temperature -13°F~149°F (-25°C~+65°C)
IP Grade IP44
Approvals cUL listed

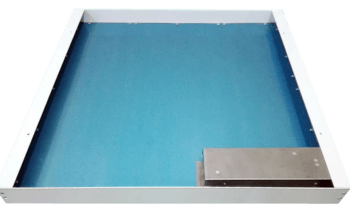

Accessory - 2X2,WX4,1X4 Surface Mount Kit

PL-XX-SMK

2X2,WX4,1X4 Surface Mount Kit

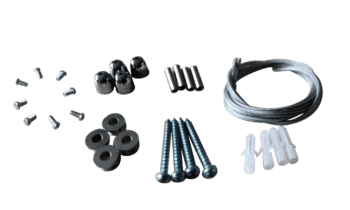

Accessory - Suspension Kit

PL-2X2/1X4-SK

Suspension Kit

Accessory - Suspension Kit

PL-2X4-SK

Suspension Kit

This product is suitable for the following applications:

  • Down Lighting
  • Commercial Lighting
  • Retail Stores
  • General Area Lighting
