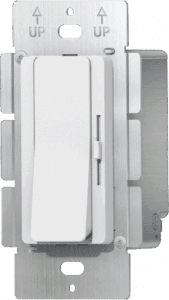

Magic Lite is proud to introduce Dim Drive, the all-in-one low-voltage lighting solution that combines a constant-voltage LED driver and full-range dimmer in one sleek device. Built for electricians, distributors, designers, and homeowners, Dim Drive eliminates compatibility headaches and delivers reliable, flicker-free dimming for 24V LED lighting.
Why Choose Dim Drive?
Dim Drive is purpose-built to make LED lighting installation and control simpler for every stakeholder.
- Two-in-one convenience: Combines a 24V LED driver and dimmer in one device.
- Familiar design: Clean look, similar to Lutron Diva dimmers.
- Quick installation: Fits standard wall boxes, works in multi-gang setups, and trims easily with zero load derating.
- Three-way switching: Control lights from multiple locations.
- Flicker-free dimming: Quiet 16 kHz PWM dimming from 0.3% to 100%.
- Built-in safety: Short-circuit, overload, and over-temperature protection with auto-recovery.
- Better value: Lower cost and improved design compared to Switch-Ex.
Perfect for Any 24V LED Lighting Project
Dim Drive is the go-to solution for low-voltage LED lighting applications, including:
- Under-cabinet kitchen lighting
- Cove and ceiling perimeter lighting
- Toe-kick and stair accent lights
- Mirror and TV backlighting
- Closet, wardrobe, and display case lighting
Pair Dim Drive with Magic Lite’s ST and SL Series LED tape, Neon Flex, Hard Strip, or 24V EStrip for dependable illumination and seamless control.
Technical Specifications
- Input Voltage: 120 VAC
- Output Voltage: 24 VDC
- Models: 60W and 100W
- Efficiency: 91% at full load
- Power Factor: > 0.99
- Operating Temp: –40 °C to +60 °C
- Environment: Rated for dry and damp locations
- Certifications: UL, cUL, FCC, Class P, SELV, RoHS, REACH
Built for Installers
Dim Drive is designed with electricians in mind. It mounts directly into a standard switch box, with an isolation barrier for safe high-/low-voltage separation in multi-gang configurations. A rotatable partition and clear wiring diagram ensure fast, code-friendly installation every time.
The Bottom Line
Magic Lite’s Dim Drive LED dimmer driver delivers the simplest, most cost-effective way to power and dim 24V LED lighting. Whether you’re an electrician, distributor, or designer, Dim Drive is the smart choice for modern, reliable low-voltage lighting.
Coming Soon: Dim Drive+
This fall, Magic Lite will release Dim Drive+, featuring CCT tunability for dynamic white-light control – all in the same compact, installer-friendly design.
Available soon – stay tuned for launch.
